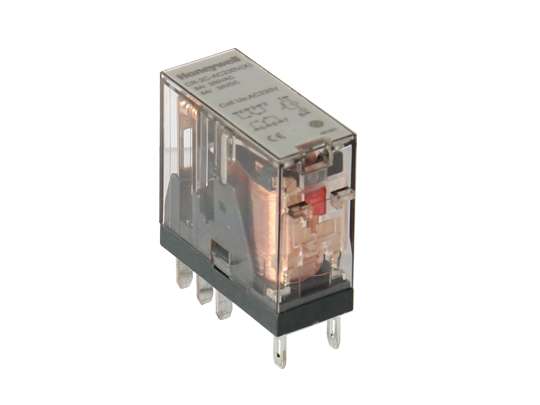

CR(X) Series Transparent Compact Type Relays

  • CR(X) series transparent compact type relays can be widely used forindustrial machines, equipment and system integration, saving mounting space in the cabinet. It can be plugged in the socket or welded on the PCB via a conversion socket.
● Tiny volume, save mounting space
● High rated current, for 1CO up to 12A / 2CO up to 8A
● LED indicator as standard (On PCB)
● Various sockets and accessories to be selected
● CE certification
Contact Characteristics
Contact type 1CO/2CO
Rated load (Resistive) 1CO: 12A 250VAC/30VDC
2CO: 8A 250VAC/30VDC
Maximum capacity 1CO: 3000VA/360W
2CO: 2000VA/240W
Technical Parametes
Contact raw material silver alloy
Contact resistance ≤50mΩ(1A 6VDC)
Pick-up time Maximum 20ms
Drop-out time Maximum 20ms
Insulation resistance 1000MΩ ( 500VDC)
Dielectric-Homopolar 5000VAC 1min
Dielectric-Heterpolar 1000VAC 1min
Dielectric-Contact/Coil 3000VAC 1min
Vibration 10Hz~55Hz, 1mm Bi-amplitude
Shock-Working 98m/s2
Shock-Damage limit 980m/s2
Service life-Mechanical 1 x 107  times
Service life-Electrical 4 x 105  times
Working ambient temperature -40 ºC ~ 55 ºC
Humidity 5% ~ 85% RH
Mount type Plug-in
Weight About 18g
Certifcation CE
