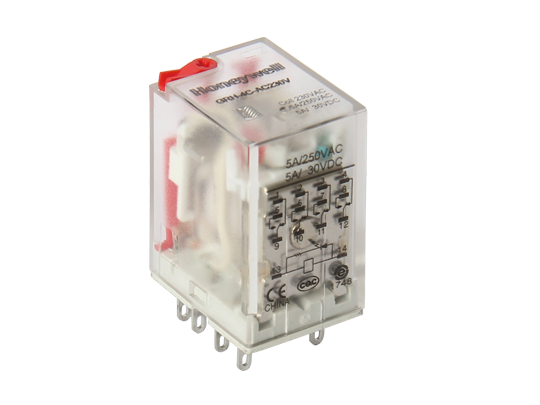

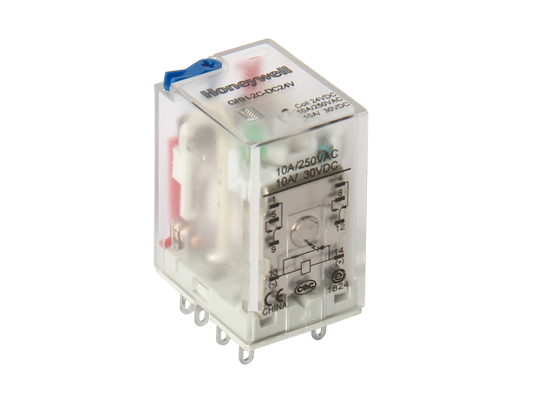

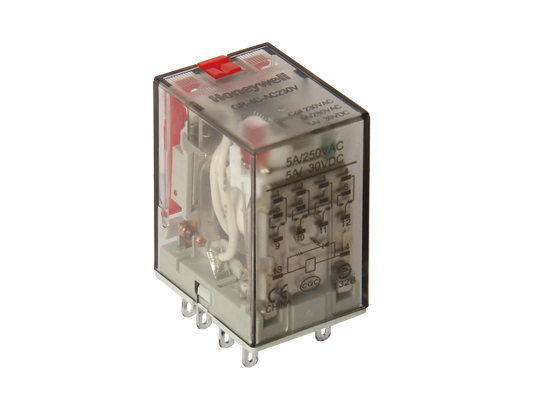

GR Series General Type Relays

  • GR series general type relays can be widely used for industrial machines and equipment, signal deployment, amplification, isolation and switch in the process control system.
● Small volume, high capacity
● Test button and mechanical indicator as standard
● LED indication light as standard
● Various sockets and accessories to be selected
● CE and CQC certification
Contact Characteristics
Contact type 2CO/4CO
Rated load (Resistive) 5A 250VAC/30VDC
Maximum capacity 1250VA/150W
Technical Parametes
Contact raw material silver alloy
Contact resistance ≤50mΩ (1A 6VDC)
Pick-up time Maximum 20ms
Drop-out time Maximum 20ms
Insulation resistance 1000MΩ ( 500VDC)
Dielectric-Homopolar 1000VAC 1min
Dielectric-Heterpolar 1000VAC 1min
Dielectric-Contact/Coil 2000VAC 1min
Vibration 10Hz~55Hz, 1mm Bi-amplitude
Shock-Working 98m/s2
Shock-Damage limit 980m/s2
Service life-Mechanical 1 x 107  times
Service life-Electrical 4 x 105  times
Working ambient temperature -55 ºC ~ 70 ºC
Humidity 30% ~ 85% RH
Mount type Plug-in
Weight About 35g
Certifcation CE, CQC, RoHS
