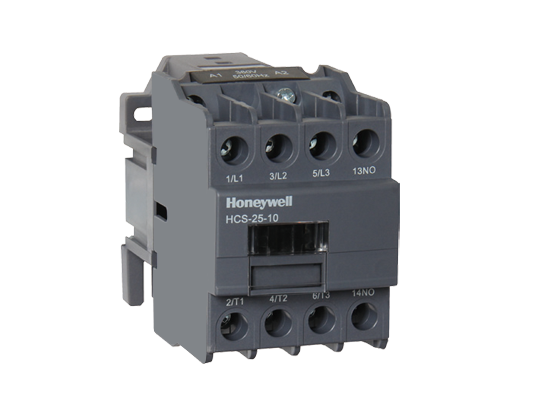

HCS Series AC Contactors

  • Honeywell HCS series AC contactor adopts environmentally friendly materials and processes, in line with the consistent concept of safer and more environmentally friendly. It has reinforced screws and more complete accessories
● AC-3/AC-4 hasthe same rated currents, can be used without derating
● Slide dustproof cover, easy to remove and dose not easily fall off, with excellent dustproof effect, and can prevent human error operations
● With integrated auxiliary contacts and helical friction design, providing superior reliability.Multiple optional accessories
● Modular design, multiple options of front-mounted and side-mounted accessories, and compatible with the major brands on market
● IP20B Protection Rating, avoiding finger contact
Basic Parameters
Rated current Ie 9~170A
Rated voltage Ue 220/380/660V
Conventional thermal current Ith 25~200A
Auxiliary contact 1NO, 1NC, 1NO+1NC, or no auxiliary contact
Accessory Can add on:
1 HAS side-attached auxiliary contact module,
1 HAS mechanical interlock module,
1 HAS fraont auxiliary contact module or 1 HAS air time delay module
Operating environment
Rated insulation voltage Ui 690V
Rated impulse withstand voltage Uimp 6kV
Standards IEC 60947-1, IEC 60947-4-1, GB/T 14048.1, GB/T 14048.4
Product certificate CCC
Protection rating IP20B
Ambienttemperature Working: -5℃～+40℃; Storage: -60℃～+80℃
Maximum working altitude 2000m (Without derating)
Installation position ±5° angle against normally vertical installation (Without derating)
Flame retardant Housing and base V0 rating
