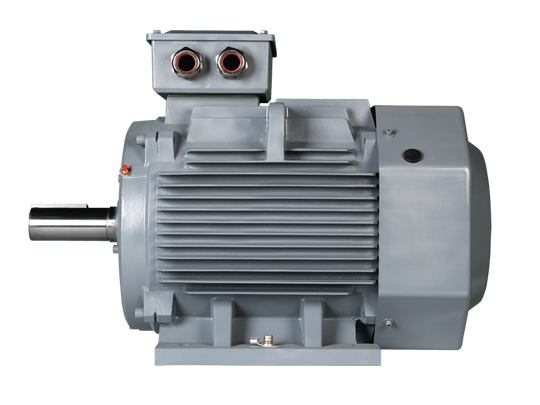

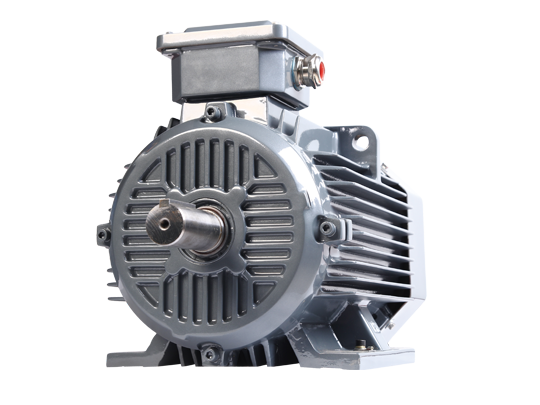

HM Series Marine Motors

  • We take advantages of global superior resources, and develops the HM series marine motors which are more suitable for marine environment. The motors comply with up to IE3 premium efficiency according to IEC(International Electro Technical Commission) standard, and meet high efficiency requirements of all kinds of marine machinery. Therefore, the Energy Efficiency Design Index(EEDI) can be reduced significantly. We can also offer different solutions depending on your special needs.
● High reliability (using highest Honeywell quality level to increase lifetime of the motors)
● IP55 high standard (creating comfortable and friendly work environment)
● High efficiency and energy saving. (IE3 premium efficiency, and also comply with GB18613-2020 《Minimum allowable values of energy efficiency and values of efficiency grades for motors》 Grade 3
● Low vibration and noise (creating comfortable and friendly work environment)
● Suitable for VSD operation
Specifications
Efficiency IE2, IE3
Frame Size 80-355
Power 0.55-315kW
Poles 2-8P
Voltage 220-690V
Frequency 50Hz, 60Hz, VSD
Housing Material Cast Iron
Protection Class IP55/56/65/66
Cooling Method IC411/416/418/410
Starting Methond DOL/VSD
