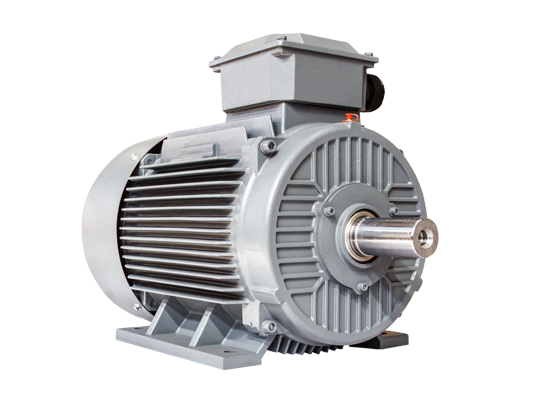

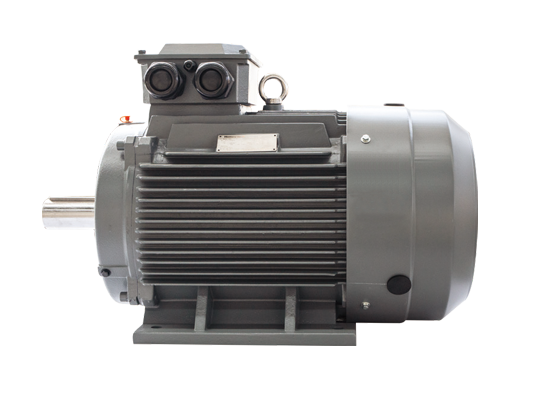

HME Series General Purpose Motors

  • Honeywell HME series general purpose motors are suitable for water treatment, HVAC, food and beverage, textile, electric power, machine tools and other industries. The motors can fulfill up to IE5 efficiency motor standard, and meet the requirements of high efficiency motors by various types of machineries. We can also provide customized solutions according to your special requirements.
● High efficiency and energy saving. (IE5/IE4/IE3 efficiency standard , and also comply with GB18613-2020
   (Minimum allowable values of energy efficiency and values of efficiency grades for motors> Grade 1/Grade 2/Grade3)
● High reliability (using highest quality level to increase lifetime of the motors)
● Low vibration and noise (creating comfortable and friendly work environment)
Specifications
Efficiency IE2, IE3, IE4, IE5
Frame Size 80-500
Power 0.55-1200kW
Poles 2-10P
Voltage 220-690V
Frequency 50Hz, 60Hz, VSD
Housing Material Cast Iron
Protection Class IP55/56/65/66
Cooling Method IC411/416/418/410
Starting Methond DOL/VSD
