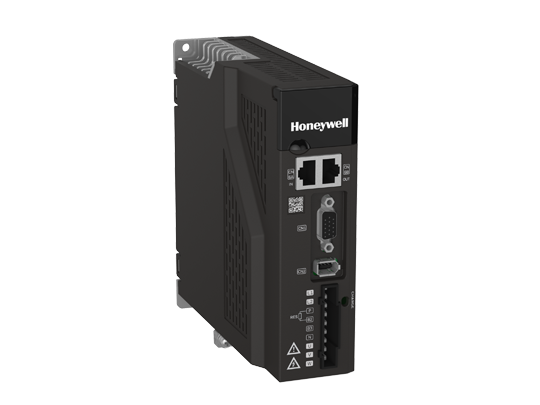

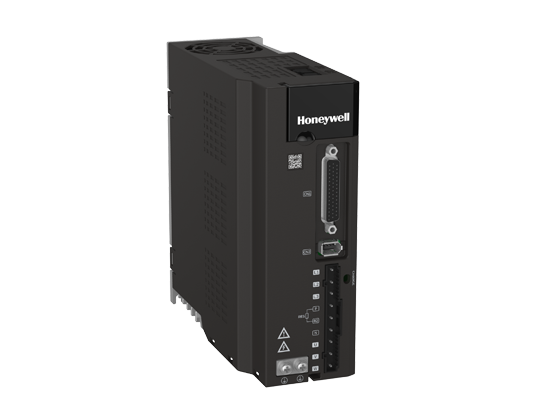

HS310 General Servo Drive

HS310 General Servo Drive

● PC software upgrade
● Drive parameter copy
● Compatible with 17bit/23bit absolute encoder
● Continuing the superior performance of Honeywell products
● Realize automatic parameter adjustment
● Powerful bus communication function
● Smart setting
● Upgraded hardware and structure, smaller size

3kHz speed loop response bandwidth

Through the unique current loop algorithm, the bandwidth of the speed loop is effectively increased, and the setting time is greatly shortened. The fastest setting time can reach 1ms, which improves production efficiency.

Support full closed-loop mode

The fully closed-loop mode supports an external second encoder or grating ruler, which reduces errors caused by the mechanical transmission gap and improves positioning accuracy. All models are equipped with this function.

Automatic setting of the notch filter

● There is no need to perform complex vibration frequency measurement and analysis, and the notch filter can be quickly searched and automatically set during the parameter tuning process through the single parameter adjustment function of the host computer.
● Simple and easy to use, the fastest does not exceed 70ms. It can greatly reduce the noise and vibration caused by the mechanical resonance of the equipment, to achieve a faster response action. This function is widely used in machine tools.


Smart setting

Automatic gain adjustment, guided setting mode, the sequential setting can complete the setting of servo gain, simple and easy to use. Provides more adjustment modes, which can be adjusted according to different mechanical structure and process characteristics, so that the machine can reach a suitable state.

Powerful bus communication function

Support RS-485, EtherCAT, CANopen, MECHA-METROLINK, MECHATROLINK, and other mainstream buses.
