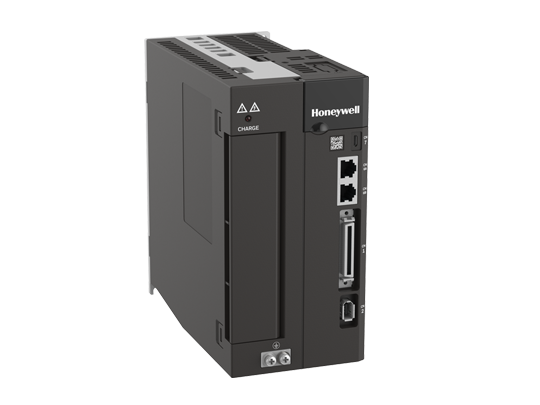

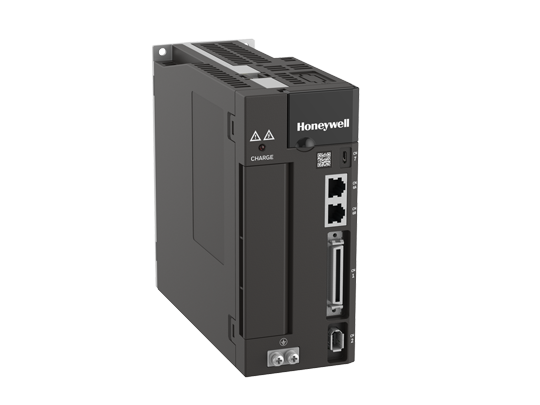

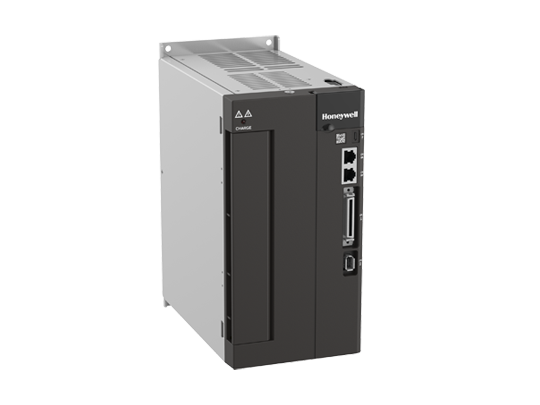

HS330 Series High Performance Servo Drive



HS330 high-performance general-purpose servo——A complete fusion of sophistication and simplicity

● The speed loop response bandwidth can reach 3kHz.
● Using a 23-Bit absolute encoder, the communication speed can reach 2.5Mpps.
● Bandwidth setting, automatically complete PID loop gain calculation.
● Powerful PC software, multi-channel monitoring, easy to use.
● Automatically complete inertia identification, loop gain, friction compensation, and other parameter settings.
● Support multi-stage vibration control function, effectively limit resonance.
● Robust control ensures smooth operation of loads with inertia within 30 times.
● New structural appearance design, compact and space-saving.

3kHz speed loop response bandwidth

Through the unique current loop algorithm, the bandwidth of the speed loop is effectively increased, and the setting time is greatly shortened. The fastest setting time can reach 1ms, which improves production efficiency.

Support full closed-loop mode

The fully closed-loop mode supports an external second encoder or grating ruler, which reduces errors caused by the mechanical transmission gap and improves positioning accuracy. All models are equipped with this function.

Automatic setting of the notch filter

● There is no need to perform complex vibration frequency measurement and analysis, and the notch filter can be quickly searched and automatically set during the parameter tuning process through the single parameter adjustment function of the host computer.
● Simple and easy to use, the fastest does not exceed 70ms. It can greatly reduce the noise and vibration caused by the mechanical resonance of the equipment, to achieve a faster response action. This function is widely used in machine tools.


Smart setting

Automatic gain adjustment, guided setting mode, the sequential setting can complete the setting of servo gain, simple and easy to use. Provides more adjustment modes, which can be adjusted according to different mechanical structure and process characteristics, so that the machine can reach a suitable state.

Powerful bus communication function

Support RS-485, EtherCAT, CANopen, MECHA-METROLINK, MECHATROLINK, and other mainstream buses.
