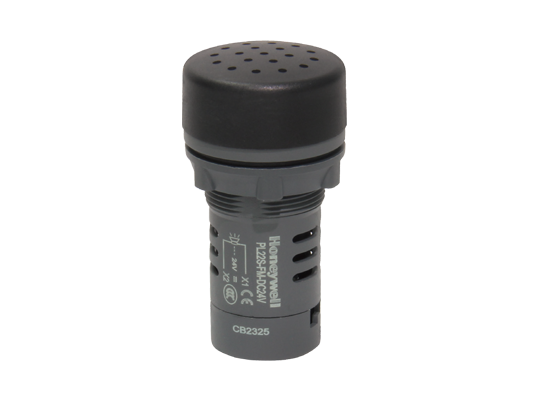

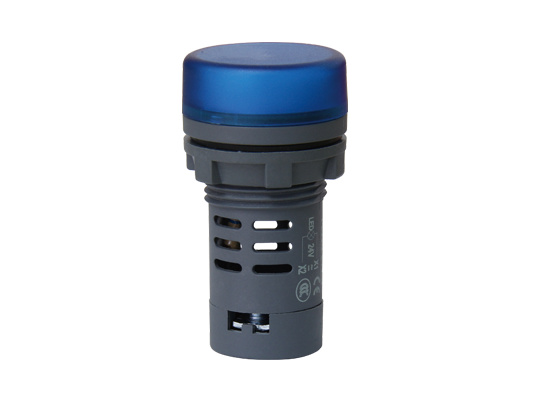

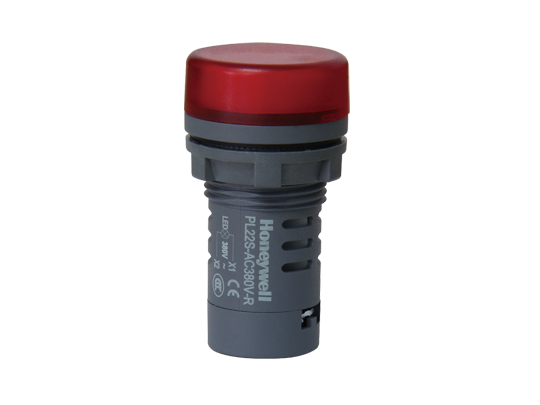

PL22S Series Pilot Lights

  • Honeywell PL22S pilot lights use import plastic raw materials, which represent a wider and global mainstream application, especially in the anti-vibration, anti-corrosion and double insulation situations.
● Use high quality safety capacitor and special epoxy which lead to a 70,000 hours life
● IP65 protection degree in front face and IP20 in rear one
● Allow a 20% voltage fluctuation, adapt for both 50Hz/60Hz AC power supply
Environment
Product Standard IEC 60947-1, IEC 60947-5-1, GB14048.1, GB14048.5
Certification CCC, CE, RoHS
Ambient air temperature Working: -25℃～+70℃; Storage: -40℃～+80℃
Relative humidity Working at maximum 95% RH
Degree of protection IP65 front face, IP20 rear face
Power consumption 24V: 0.4W, 220V: 3.3W
Rated insulation voltage Ui 660V
Service life 70000 hours (Under rated voltage)
Voltage limits U≤1.2 Un
Wire connection Minimum 1x0.5mm2 , Maximum 2x1.5mm2
