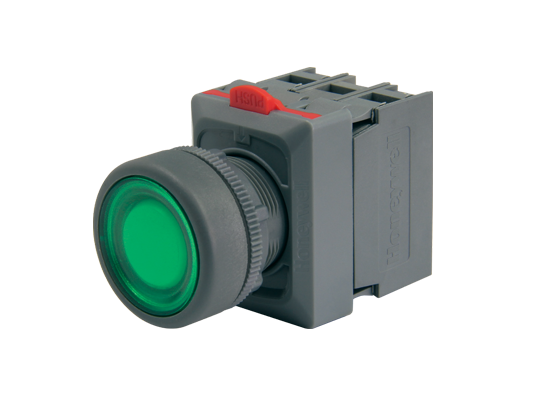

RP22 Series Push Button

  • Honeywell RP22 push buttons use import plastic raw materials, which represent a wider and global mainstream application, especially in the anti-vibration, anti-corrosion and double insulation situations.
● Wide variety of button head models that can meet various needs
● Tool free installation and disassembly, convenient and efficient, saving time
● The button head adopts a concave arc-shaped design, which fits the fingers and has a better tactile sensation
● The front protection level of the button head can reach IP65
● Compact contact and fixed bracket design, saving space
Environment
Product Standard IEC 60947-1, IEC 60947-5-1, GB14048.1, GB14048.5
Certification CCC, CE, RoHS
Protective treatment "TH" fit for damp and heat environment
Ambient air temperature Working: -25℃～+70℃; Storage: -40℃～+80℃
Vibration resistance IP65 front face

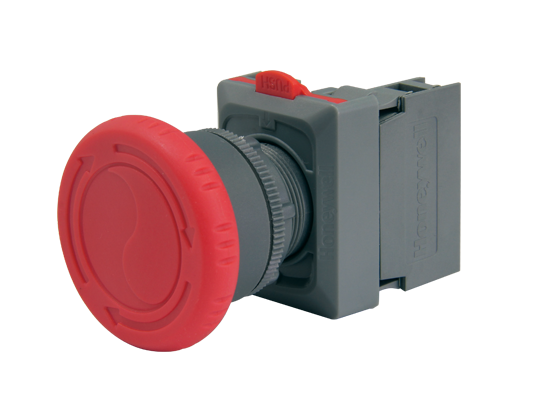

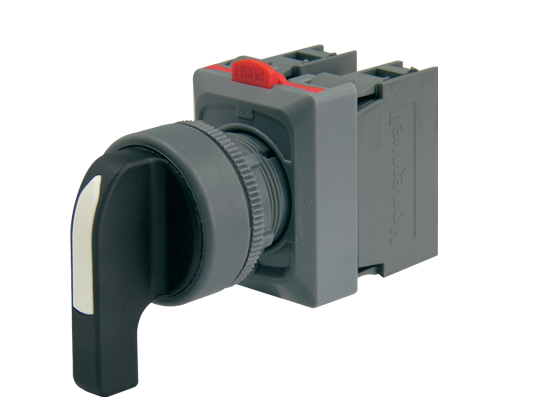

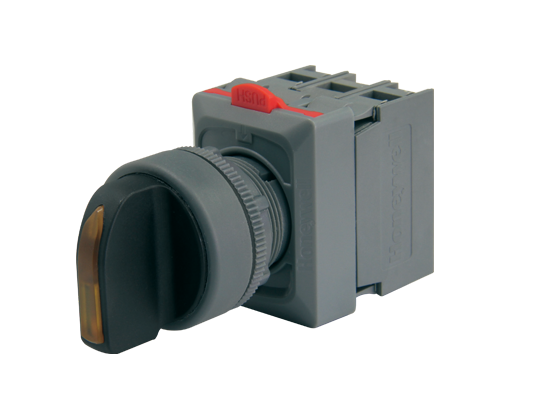

Mechanical durability 3,000,000 cycles (vertical acting type), 1,000,000 cycles( rotation type), 300,000 cycles (emergency stop)
Contact Characteristics
Rated voltage and current AC-15 Ue/Ie: 120V/6A; 240V/3A, 380V/1.9A
DC-13 Ue/Ie: 250V/0.27A, 125V/0.55A
Rated insulation voltage Ui 600V, 400V(Illuminated push button)
Rated impulse withstand voltage Uimp 6000V, 4000V(Illuminated push button)
Type of contact Slow break, NC contact definite disconnection
Short circuit protection 10A Conform with IEC 60947-5-1
Wire connection Screw connection
