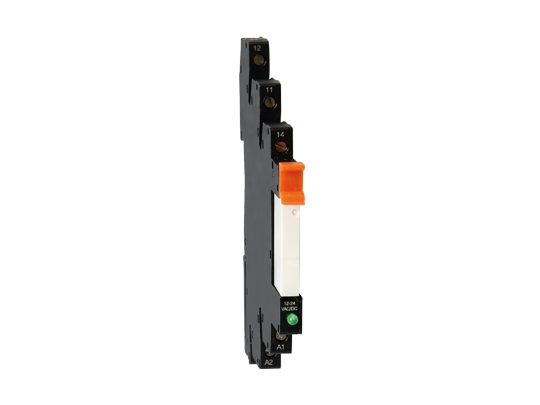

SR Series Slim Type Relays

  • Ultra thin volume, ultra high capacity.SR series has become the frst choice of the system integration suppliers, we look forward to your more applications: paper making, machines, thermal power plant, process control, wind power plant, engineering equipment and so on.
● Ultra thin, 6mm width only
● Up to 6A contact capacity
● Over voltage protection integrated in the socket
● Both AC/DC for coil voltage
● CE certifcaiton and RoHS compliance
● Screw or spring terminal to be selected
Contact Characteristics
Contact type 1CO
Rated load (Resistive) 6A 250VAC/30VDC
Maximum capacity 1500VA/180W
Technical Parametes
Contact raw material silver alloy
Contact resistance ≤100mΩ (1A 6VDC)
Pick-up time Maximum 8ms
Drop-out time Maximum 4ms
Insulation resistance 1000MΩ ( 500VDC)
Dielectric-Homopolar 4000VAC 1min
Dielectric-Heterpolar 1000VAC 1min
Vibration 10Hz~55Hz, 1mm Bi-amplitude
Shock-Working 49m/s2
Shock-Damage limit 980m/s2
Service life-Mechanical 1 x 107  times
Service life-Electrical NO: 3 x 104  times; NC: 1 x 104  times
Working ambient temperature -40 ºC ~ 85 ºC
Humidity 20% ~ 85% RH
Mount type PCB type
Weight About 5g
Certifcation CE, CQC, RoHS
